CENTRIX 16 Channel With PoE NVR NVS16-4P

add to cartDOWNLOAD
SKU: NVS16-4P
Category: HIGH DEFINITION VIDEO SURVEILLANCE (HDVS) (IP) - VIRTUE (NVR).
Specification

Product Description

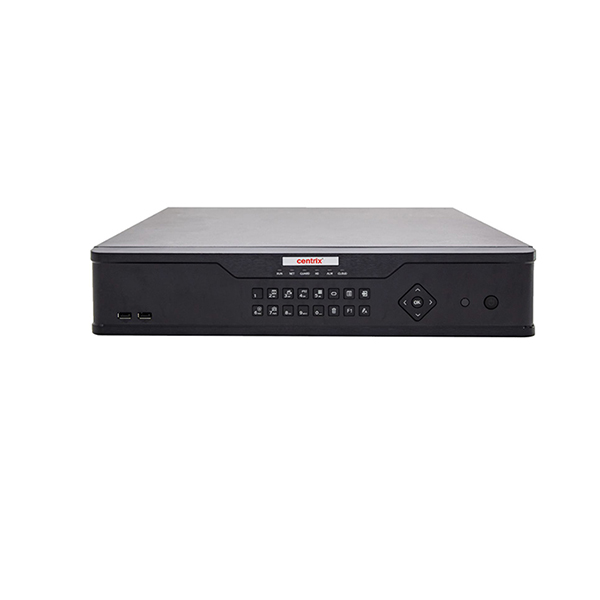

CENTRIX 16 Channel With PoE Network Video Recorder

Model: NVS16-4P



KEY FEATURES
  • 16-channel input
  • Plug & Play with 4 independent PoE network interfaces
  • Third-party IP cameras supported with ONVIF conformance
  • Support 1-ch HDMI, 1-ch VGA, HDMI at up to 4K(3840×2160) resolution
  • Up to 12 Megapixels resolution recording
  • Up to 8 Megapixels resolution recording
  • Support H.265/H.264 video formats
  • Accurate retrieval, instant playback
  • 2 SATA HDD up to 8 TB
  • Support various VCA detection alarm and VCA search
  • Plug & Play with up to 8/16 independent PoE network interfaces
  • Support for P2P, UPnP, NTP, DHCP, PPPoESupport for mobile client access
TECHNICAL SPECIFICATIONS
  • IIP VIDEO INPUT  :  16-ch
  • TWO-WAY AUSIO INPUT  :  1-ch, RCA
  • INCOMING BANDWIDTH  :  160Mbps
  • OUTBOING BANDWIDTH  :  320Mbps
  • REMOTE CONNECTION  :  128
  • HDMI/VGA OUTPUT HDMI  :  4K (3840×2160) /30Hz, 1920x1080p /60Hz, 1920x1080p
    /50Hz, 1600×1200 /60Hz, 1280×1024 /60Hz, 1280×720 /60Hz,
    1024×768 /60Hz
    VGA:1920x1080p /60Hz, 1920x1080p /50Hz, 1600×1200 /60Hz,
    1280×1024 /60Hz, 1280×720 /60Hz, 1024×768 /60Hz
  • AUDIO OUTPUT  :  1-ch, RCA
  • RECORDING RESOLUTION  :  12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
  • SYNCHRONOUS PLAYBACK  :  8-ch
  • COMPRESSION  :  H.265/H.264
  • LIVE VIEW/PLAYBACK  :  12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
  • CAPABILITY  :  4 x 12MP@20, 4 x 4K@30, 8 x 4MP@20, 16 x 1080P@25
  • SATA  :  4 SATA interface
  • CAPACITY  :  up to 6TB for each disk
  • NETWORK INTERFACE  :  1 RJ-45 10M/100M self-adaptive Ethernet Interface
  • NETWORK FUNCTION  :  HTTP, TCP/IP, IPV4, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS,IP
  • Filter, PPPOE, DDNS, FTP, IP Server, P2P
  • USB INTERFACE  :  Front panel: 1 x USB2.0，Rear panel: 1 x USB3.0
  • ALARM IN  :  16-ch
  • ALARM OUT  :  4-ch
  • INTERFACE  :   16 independent 100 Mbps PoE network interfaces
  • SUPPORTED STANDARD  :  IEEE 802.3at, IEEE 802.3af
  • POWER SUPPLY  :  100 ~ 240 VAC
  • CONSUMPTION W/O HDD  :  20 W
  • POE  :  Max 30W for single port; Max 54W in total ( 13.5W for each )
  • WORKING TEMPERATURE  :  -10°C ~ + 55°C ( +14°F ~ +131°F )
  • WORKING HUMIDITY   :  10% ~ 90%
  • DIMENSION  :  86 × 442 × 425mm (3.4″ × 17.4″ × 16.7″ )
  • WEIGHT W/O HDD  :  5.24 Kg ( 11.55 lb )
