Centrix Infra Red Dome Camera D45-2812M

add to cartDOWNLOAD
SKU: D45-2812M
Category: HIGH DEFINITION VIDEO SURVEILLANCE (HDVS) (IP) - VIRTUE (Camera).
Specification

Product Description

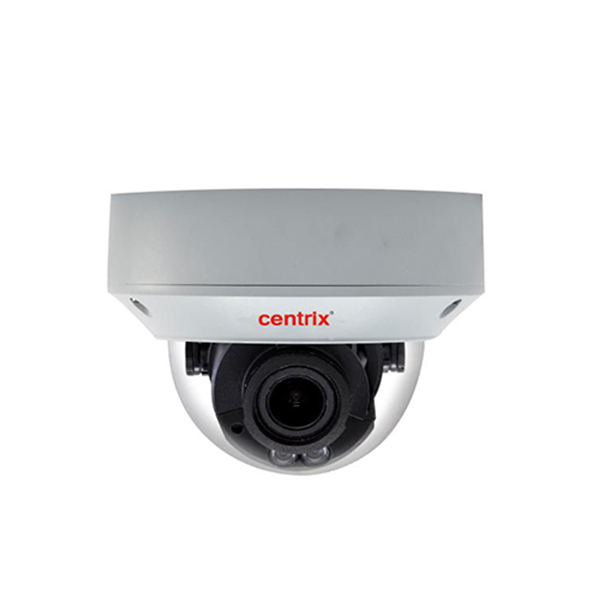

CENTRIX Infra Red Dome Camera

Model: D45-2812M



KEY FEATURES

  • Day/night functionality
  • Smart IR, up to 30m (98 ft) IR distance
  • Up to 120 dB Optical WDR(Wide Dynamic Range)
  • 3D DNR (Digital Noise Reduction)
  • Build-in motorized lense for remote zoom
  • H.265, H.264, MJPEG
  • Embedded smart algorithm
  • Triple streams
  • ROI (Region of Interest)
  • 9:16 corridor mode
  • ONVIF Conformance
  • Support PoE power supply
  • Built-in PoE splitter that outputs DC 12V
  • Wide temperature range: -40°C to 60°C (-40°F to 140°F)
  • Wide voltage range of ±25%
  • IP67 & IK10

TECHNICAL SPECIFICATIONS
  • SENSOR  :  1/3″, 4 megapixel, progressive scan CMOS
  • SHUTTER  :  Auto/Manual, 1/6~1/100000 s
  • LENS  :  2.8~12mm @F1.4; Angle of view: 95°~29°
  • ZOOM/FOCUS  :  Motorized
  • MIN ILLUMINATION  :  Colour: 0.02 Lux (F1.4, AGC ON)
  • DAY/NIGHT  :  0 Lux with IR on
  • IR RANGE  :  IR-cut filter with auto switch (ICR) Up to 30m (98 ft) IR range
  • S/N RATIO  :  >55 dB
  • WDR  :  Optical WDR (up to 120 dB)
  • MAX RESOLUTION  :  2592 × 1520
  • VIDEO COMPRESSION  :  H.265, H.264, MJPEG
  • FRAME RATE  :  4MP (2592×1520): Max. 20 fps; 4MP (2560×1440): Max. 25 fps
    3MP (2048×1520): Max. 30 fps; 1080P (1920×1080): Max. 30 fps
  • 9:16 CORRIDOR MODE  :  Supported
  • ROI  :  Supported
  • VIDEO STREAMING  :  Triple
  • OSD  :  Up to 8 OSDs
  • PRIVACY MASK  :  Up to 8 areas
  • BEHAVIOR DETECTION  :  Intrusion, crossing line, motion detection
  • EXCEPTION DETECTION  :  Audio detection
  • INTELLIGENT IDENTIFICATION  :  Face detection
  • STATISTICAL ANALYSIS  :  People counting
  • AUDIO COMPRESSION  :  G.711
  • TWO-WAY AUDIO  :  Supported
  • EDGE STORAGE  :  Micro SD, up to 128 GB
  • PROTOCOLS  :  L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP,DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x
  • COMPATIBLE INTEGRATION  :  ONVIF, API
  • AUDIO I/O  :  Input: impedance 35 k; amplitude 2 V [p-p] Output: impedance 600 ; amplitude 2 V [p-p]
  • ALARM I/O  :  1 / 1
  • NETWORK  :  10M/100M Base-TX Ethernet
  • VIDEO OUTPUT  :  1 BNC, impedance 75 ; amplitude 1 V [p-p]
  • POWER  :  12 V DC, or PoE (IEEE802.3 af) Power consumption: Max 8W
  • MATERIAL  :  Cast aluminum
  • DIMENSION/WEIGHT  :  148 x 111.3 mm (Ø5.8” x 4.4”) / 0.75 kg (1.7 lb)
  • WORKING ENVIRONMENT   :  -40°C ~ +60°C (-40°F ~ 140°F), Humidity  95% RH(non-condensing)
  • INGRESS PROTECTION  :  IP67 &IK10v
