CENTRIX High Speed Dome Camera SE25SW-44X

add to cartDOWNLOAD
SKU: SE25SW-44X
Category: HIGH DEFINITION VIDEO SURVEILLANCE (HDVS) (IP) - VIRTUE (Camera).
Specification

Product Description

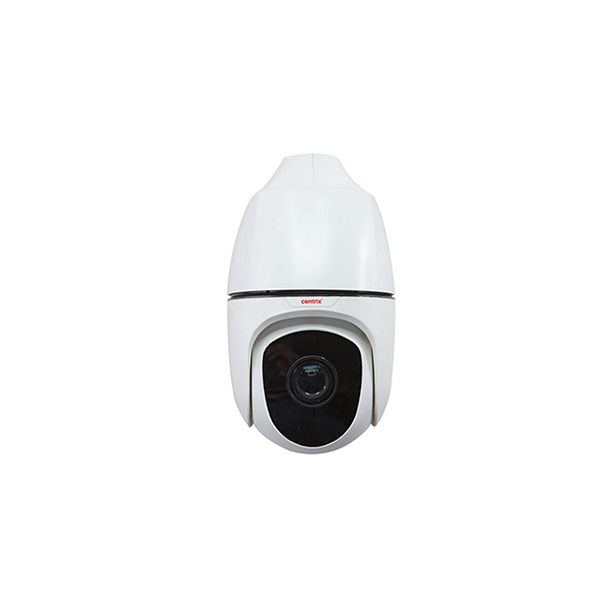

CENTRIX High Speed Dome Camera

Model: SE25SW-44X



KEY FEATURES
  • Starlight illumination
  • 44X Optical Zoom
  • Accurate and fast focusing
  • Up to 120 dB Optical WDR(Wide Dynamic Range)
  • The Fifth-generation infrared technology, more than 250m (820ft) IR distance
  • Optical glass window with higher light transmittance
  • EIS (Electronic Image Stabilization)
  • IR anti-reflection window to increase the infrared transmittance
  • Smart IR
  • H.265, H.264, MJPEG
  • Embedded smart algorithm
  • Triple streams
  • 1080P@60fps supported
  • ONVIF Conformance
  • Intelligent temperature control technology
  • 6 KV surge protection designed for network interface

TECHNICAL SPECIFICATIONS
  • SENSOR  :  1/2.8″, 2 megapixel, progressive scan, CMOS
  • LENS  :  6.5 ~ 143 mm (22x optical zoom)
  • ANGLE OF VIEW(H)  :  70° (wide) ~ 3.76° (tele)
  • IRIS  :  Auto/Manual; F1.5 ~ F3.4
  • SHUTTER  :  Auto/Manual; shutter time: 1/6 s ~ 1/8000 s
  • MINIMUM ILLUMINATION  :  Colour: 0.001 lux (F1.5, AGC ON), 0 Lux with IR on
  • S/N RATIO  :  >52dB
  • WDR  :  120 dB
  • DEFOG  :  Optical Defog & Digital Defog
  • DAY/NIGHT  :  IR-cut filter with auto switch (ICR)
  • MAX RESOLUTION  :  1920 × 1080
  • VIDEO COMPRESSION  :  H.265, H.264, MJPEG
  • FRAME RATE  :  1080P (1920×1080):Max.60 fps
  • VIDEO STREAMING  :  Triple
  • OSD  :  Up to 8 OSDs
  • PRIVACY MASK  :  Up to 4 areas
  • DIGITAL ZOOM  :  Supported
  • HLC  :  Supported
  • IES  :  Supported
  • BEHAVIOR DETECTION  :  Intrusion, crossing line, motion detection
  • EXCEPTION DETECTION  :  Audio detection
  • INTELLIGENT IDENTIFICATION  :  Face detection
  • STATISTICAL ANALYSIS  :  People counting
  • AUDIO COMPRESSION  :  G.711
  • TWO-WAY AUDIO  :  Supported
  • EDGE STORAGE  :  Micro SD, up to 128 GB
  • PROTOCOLS  :  L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE,RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SIP, 802.1x
  • COMPATIBLE INTEGRATION  :  ONVIF, API
  • PAN RANGE  :  360° (endless)
  • PAN SPEED  :  0.1°/s ~ 240°/s, Preset speed: 300°/s
  • TILT RANGE  :  –15° ~ +90° (auto reverse)
  • TILT SPEED  :  0.1° ~ 160°/s, Preset speed: 240°/s
  • NUMBER OF PRESET  :  256
  • PATROL :  Up to 16 patrols, up to 32 presets per patrol, Note: Thetotal number of patrols and patterns is 16.
  • HOME POSITION  :  Supported
  • DRAG-TO-ZOOM  :  Supported
  • AUDIO INPUT  :  impedance 35 k; amplitude 2 V [p-p]
  • AUDIO OUTPUT  :   impedance 600 ; amplitude 2 V [p-p]
  • ALARM I/O  :  2/ 1
  • SERIAL PORT  :  1 RS485
  • NETWORK :   1 RJ45 10M/100M Base-TX Ethernet
  • VIDEO OUTPUT  :  1 BNC, impedance 75 ; amplitude 1 V [p-p]
  • POWER  ;  24 V±25% AC (Default), 24 V±25% DC, Power consumption:16 ~56W
  • DIMENSION  :  270mm×496.7mm(10.6” x 19.6”)
  • WEIGHT :   9.69kg(21.4lb)
  • HEATER  :  Built-in Heater and Temperature control system
  • WORKING ENVIRONMENT :   –40°C ~ +65°C (-40°F ~ 149°F), Humidity  95% RH(non-condensing)
  • RATING :  IP67
